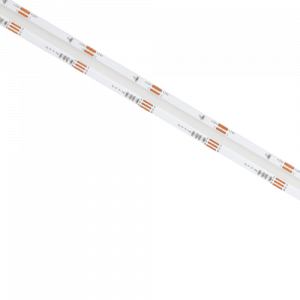

COB RGBW 12mm 20W

*Model No.:HP-RGBWCOBN784-2412

*Color: RGBW

*PCB width: 12mm

*Chips/m: COB 784Chips/m

1. High positioning, high reliability, ultra-thin appearance, and super flexible bending.
2. Homogeneous and soft linear lighting performance for 5M[16.4ft.] length.
3. Premium milky bounding wall structure design for better light uniformity.
4. Use thick copper that is superior to products on the market, to ensure consistency in voltage and brightness for the entire reel.
5. Adopting an exclusively designed protective structure, with excellent bending resistance, strong reliability, and stable quality.
6. Waterproof available in IP65 and IP67 Plus for indoor and outdoor scenes.
7. 50,000 hours lifespan and 5-year warranty.

Description

Model No.
HP-RGBWCOBN784-2412
Power
20W/m
PCB width
12mm
Lumen output  (RGBW)
799Lm/m RGBW
MaxRun
5meter
Chips/m
COB 784Chips/m
Cut Length
36mm
Voltage 24V DC
Color/CCT RGB R: 620-625nm G: 520-525nm B: 465-470nm / White 2700~6500K
CRI \
Dimmable
Yes (PWM, DALI, 0/1-10V, Triac)
IP Rating IP20/IP65/IP67/IP68
Ambient temp.
-35°C ~ 50°C
Beam Angle
180°
Strip length/reel
0.5m ~ 50m
Lifespan
50,000Hrs
