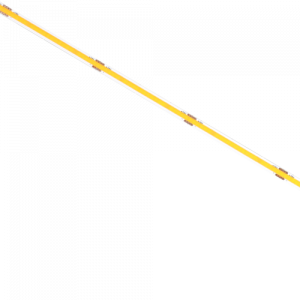

*Model No.:HP-SWCOBN480-2408
*Color: Single Color
*PCB width: 8mm
*Chips/m: COB 480Chips/m
1. High positioning, high reliability, ultra-thin appearance, and super flexible bending.
2. Homogeneous and soft linear lighting performance for 5M[16.4ft.] length.
3. Premium milky bounding wall structure design for better light uniformity.
4. Use thick copper that is superior to products on the market, to ensure consistency in voltage and brightness for the entire reel.
5. Adopting an exclusively designed protective structure, with excellent bending resistance, strong reliability, and stable quality.
6. Waterproof available in IP65 and IP67 Plus for indoor and outdoor scenes.
7. 50,000 hours lifespan and 5-year warranty.
|
Model No.
|
HP-SWCOBN480-2408
|
||
|
Power
|
10W/m
|
||
|
PCB width
|
8mm
|
||
|
Lumen output (4000K)
|
1000Lm/m CRI 90+
|
||
|
MaxRun
|
5meter | ||
|
Chips/m
|
COB 480Chips/m
|
||
|
Cut Length
|
50mm
|
||
| Voltage | 24V DC | ||
| CCT | 2700~6500K | ||
| CRI | CRI90+~95+ | ||
| Dimmable |
Yes (PWM, DALI, 0/1-10V, Triac)
|
||
| IP Rating | IP20/IP65/IP67/IP68 | ||
|
Ambient temp.
|
-35°C ~ 50°C
|
||
|
Beam Angle
|
180°
|
||
|
Strip length/reel
|
0.5m ~ 50m
|
||
|
Lifespan
|
50,000Hrs
|
||
