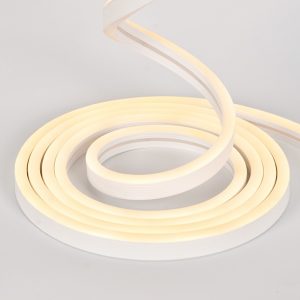

Neon Strip S0613

Categories ,
*Model No.:HP-NS-S0613-SW/ TW/ RGB
*Color: Single Color/ Tunable White/ RGB
*Size: 6*13mm
Side Bend / Horizontal Series
The Side / Horizontal bending LED neon flex features dot-free lighting, longer lifespan and High efficacy, high CRI, it is designed to provide consistent linear lighting for a wide variety of applications for cove lighting and indirect lighting in hotels, restaurants, shops, offices and homes.
Product features
  • High efficacy
High lighting transmission rate, up to 90%,The high lumen output solution is suitable for decorative and illumination lighting purpose.
  • Good thermal management
The silicone thermal conductivity is 0.27W/MK, which is much higher than PVC 0.14W/MK, it helps better thermal management on LED strip.
  • High Ingress Protection
The IP67 and IP68 is coming true by adopting the superior design and manufacturing craft on the cable and cap.
  • Weather resistance
Storage temp. : -50~150°C
Ambient temp. : -25 ~ 45°C
Customized Your Own Led Strip Light

Description

Model No.
SE0613-SW
 SE0613-TW SE0613-RGB
Power
15W/m
15W/m
 15W/m
CCT/Color
1800K~6500K
 1800K+6500K RGB
Lumen output  (4000K)
600 Lm/m CRI 80+
530 Lm/m CRI 90+
490 Lm/m CRI 95+
525 Lm/m CRI 80+
465 Lm/m CRI 90+
420 Lm/m CRI 95+
225 Lm/m RGB
MaxRun
 5m 5m 5m
LEDs/m
2835 140LEDs/m
 2016 280LEDs/m 3838 120LEDs/m
Cut Length
50mm
Voltage 24V DC
CRI CRI80+~95+ CRI80+~95+ /
Dimmable
Yes (PWM, DALI, 0/1-10V, Triac)
IP Rating IP67
Ambient temp.
-35°C ~ 45°C
Beam Angle
140°
Strip length/reel
0.5m ~ 50m
Lifespan
50,000Hrs
